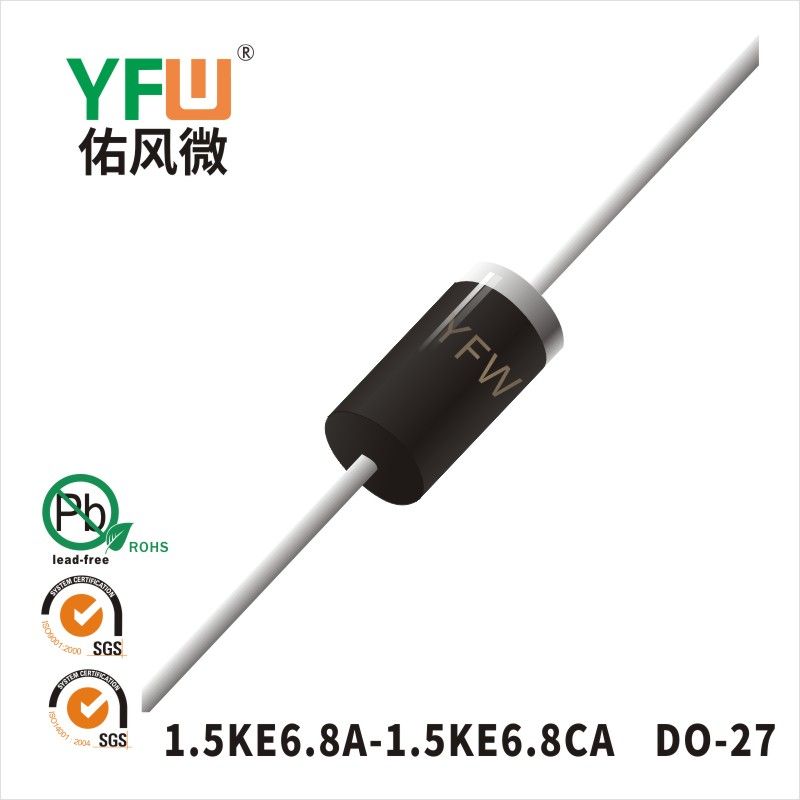

瞬態抑制二極管1.5KE6.8A-1.5KE6.8CA 規格書_價格_PDF手冊-廣東佑風微原廠1.5KE6.8A-1.5KE6.8CA DO-27_(YFW佑風微)品牌
Transient Voltage Suppressor 瞬態抑制二極管
| Part Number(U ni) | Part Number(Bi) | Breakdown Voltage VBR@IT | Maximum Reverse Leakage IR @ VWM (μ A) | Working Peak Reverse Voltage VRWM (V) | Maximum Reverse Surge Current IPP (A) | Maximum Clamping Voltage Vc @ IPP (V) | Maximum Temperature Coefficient of VBR (%/°C) | ||
| Min(V) | Max (V) | IT(mA) | |||||||
| 1.5KE6.8A | 1.5KE6.8CA | 6.45 | 7.14 | 10 | 1000 | 5.8 | 143 | 10.5 | 0.057 |
| 1.5KE7.5A | 1.5KE7.5CA | 7.13 | 7.88 | 10 | 500 | 6.4 | 133 | 11.3 | 0.061 |
| 1.5KE8.2A | 1.5KE8.2CA | 7.79 | 8.61 | 10 | 200 | 7.02 | 124 | 12.1 | 0.065 |
| 1.5KE9.1A | 1.5KE9.1CA | 8.65 | 9.55 | 1 | 50 | 7.78 | 112 | 13.4 | 0.068 |
| 1.5KE10A | 1.5KE10CA | 9.5 | 10.5 | 1 | 10 | 8.55 | 103 | 14.5 | 0.073 |
| 1.5KE11A | 1.5KE11CA | 10.5 | 11.6 | 1 | 5 | 9.4 | 96.2 | 15.6 | 0.075 |
| 1.5KE12A | 1.5KE12CA | 11.4 | 12.6 | 1 | 5 | 10.2 | 89.8 | 16.7 | 0.078 |
| 1.5KE13A | 1.5KE13CA | 12.4 | 13.7 | 1 | 5 | 11.1 | 82.4 | 18.2 | 0.081 |
| 1.5KE15A | 1.5KE15CA | 14.3 | 15.8 | 1 | 1 | 12.8 | 70.8 | 21.2 | 0.084 |
| 1.5KE16A | 1.5KE16CA | 15.2 | 16.8 | 1 | 1 | 13.6 | 66.7 | 22.5 | 0.086 |
| 1.5KE18A | 1.5KE18CA | 17.1 | 18.9 | 1 | 1 | 15.3 | 59.5 | 25.2 | 0.089 |
| 1.5KE20A | 1.5KE20CA | 19 | 21 | 1 | 1 | 17.1 | 54.2 | 27.7 | 0.09 |
| 1.5KE22A | 1.5KE22CA | 20.9 | 23.1 | 1 | 1 | 18.8 | 49 | 30.6 | 0.092 |
| 1.5KE24A | 1.5KE24CA | 22.8 | 25.2 | 1 | 1 | 20.5 | 45.2 | 33.2 | 0.094 |
| 1.5KE27A | 1.5KE27CA | 25.7 | 28.4 | 1 | 1 | 23.1 | 40 | 37.5 | 0.096 |
| 1.5KE30A | 1.5KE30CA | 28.5 | 31.5 | 1 | 1 | 25.6 | 36.2 | 41.4 | 0.097 |
| 1.5KE33A | 1.5KE33CA | 31.4 | 34.7 | 1 | 1 | 28.2 | 32.8 | 45.7 | 0.098 |
| 1.5KE36A | 1.5KE36CA | 34.2 | 37.8 | 1 | 1 | 30.8 | 30.1 | 49.9 | 0.099 |
| 1.5KE39A | 1.5KE39CA | 37.1 | 41 | 1 | 1 | 33.3 | 27.8 | 53.9 | 0.1 |
| 1.5KE43A | 1.5KE43CA | 40.9 | 45.2 | 1 | 1 | 36.8 | 25.3 | 59.3 | 0.101 |
| 1.5KE47A | 1.5KE47CA | 44.7 | 49.4 | 1 | 1 | 40.2 | 23.1 | 64.8 | 0.101 |
| 1.5KE51A | 1.5KE51CA | 48.5 | 53.6 | 1 | 1 | 43.6 | 21.4 | 70.1 | 0.102 |
| 1.5KE56A | 1.5KE56CA | 53.2 | 58.8 | 1 | 1 | 47.8 | 19.5 | 77 | 0.103 |
| 1.5KE62A | 1.5KE62CA | 58.9 | 65.1 | 1 | 1 | 53 | 17.6 | 85 | 0.104 |
| 1.5KE68A | 1.5KE68CA | 64.6 | 71.4 | 1 | 1 | 58.1 | 16.3 | 92 | 0.104 |
| 1.5KE75A | 1.5KE75CA | 71.3 | 78.8 | 1 | 1 | 64.1 | 14.6 | 104 | 0.105 |
| 1.5KE82A | 1.5KE82CA | 77.9 | 86.1 | 1 | 1 | 70.1 | 13.3 | 113 | 0.105 |
| 1.5KE91A | 1.5KE91CA | 86.5 | 95.5 | 1 | 1 | 77.8 | 12 | 125 | 0.106 |
| 1.5KE100A | 1.5KE100CA | 95 | 105 | 1 | 1 | 85.5 | 10.9 | 137 | 0.106 |
| 1.5KE110A | 1.5KE110CA | 105 | 116 | 1 | 1 | 94 | 9.9 | 152 | 0.107 |
| 1.5KE120A | 1.5KE120CA | 114 | 126 | 1 | 1 | 102 | 9.1 | 165 | 0.107 |
| 1.5KE130 | 1.5KE130C | 117 | 143 | 1 | 1 | 105 | 8 | 187 | 0.107 |
| 1.5KE130A | 1.5KE130CA | 124 | 137 | 1 | 1 | 111 | 8.4 | 179 | 0.107 |
| 1.5KE150A | 1.5KE150CA | 143 | 158 | 1 | 1 | 128 | 7.2 | 207 | 0.106 |
| 1.5KE160A | 1.5KE160CA | 152 | 168 | 1 | 1 | 136 | 6.8 | 219 | 0.108 |
| 1.5KE170A | 1.5KE170CA | 162 | 179 | 1 | 1 | 145 | 6.4 | 234 | 0.108 |
| 1.5KE180A | 1.5KE180CA | 171 | 189 | 1 | 1 | 154 | 6.1 | 246 | 0.108 |
| 1.5KE200A | 1.5KE200CA | 190 | 210 | 1 | 1 | 171 | 5.5 | 274 | 0.108 |
| 1.5KE220A | 1.5KE220CA | 209 | 231 | 1 | 1 | 185 | 4.6 | 328 | 0.108 |
| 1.5KE250A | 1.5KE250CA | 237 | 263 | 1 | 1 | 214 | 4.4 | 344 | 0.110 |
| 1.5KE300A | 1.5KE300CA | 285 | 315 | 1 | 1 | 256 | 3.6 | 414 | 0.110 |
| 1.5KE350A | 1.5KE350CA | 333 | 368 | 1 | 1 | 300 | 3.1 | 482 | 0.110 |
| 1.5KE400A | 1.5KE400CA | 380 | 420 | 1 | 1 | 342 | 2.7 | 548 | 0.110 |
| 1.5KE440A | 1.5KE440CA | 418 | 462 | 1 | 1 | 376 | 2.5 | 602 | 0.110 |
| 1.5KE480A | 1.5KE480CA | 456 | 504 | 1 | 1 | 408 | 2.28 | 658 | 0.110 |
| 1.5KE510A | 1.5KE510CA | 485 | 535 | 1 | 1 | 434 | 2.15 | 698 | 0.110 |
| 1.5KE540A | 1.5KE540CA | 513 | 567 | 1 | 1 | 459 | 2.03 | 740 | 0.110 |
