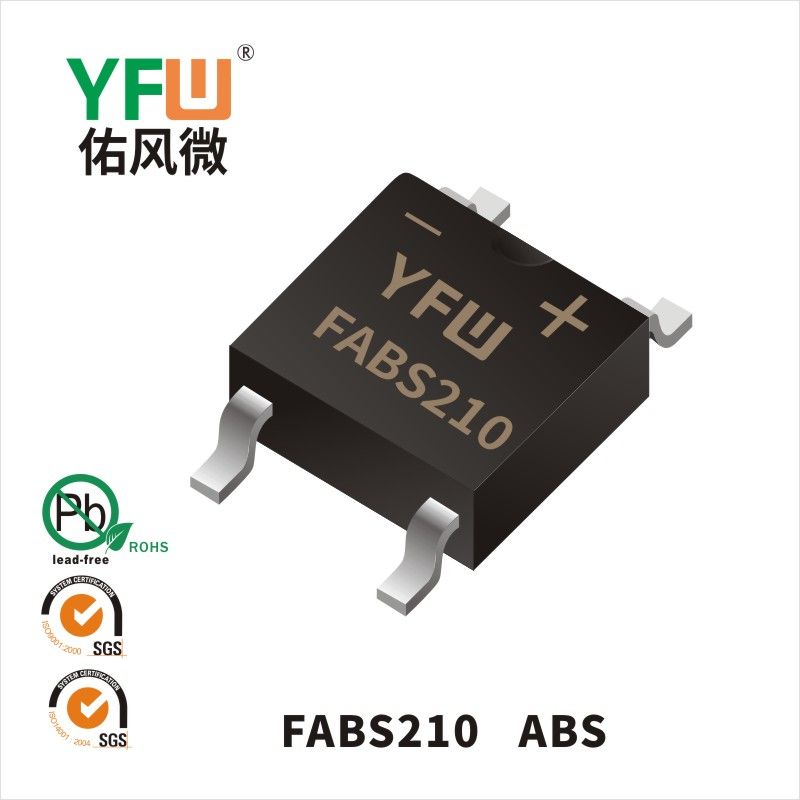

橋式整流器FABS210 規格書_價格_PDF手冊-廣東佑風微原廠FABS210 ABS_(YFW佑風微)品牌
Rectifier Bridge 橋式整流器
| TYPE | I(AV) | VRRM | IFSM | VFM | I RM @ VRRM | trr | Pafckage Outline | |
| @IRM | VFM | I(AV) | TA=25℃ | |||||
| A | V | A | V | A | μA | nS | ||
| FMB10F | 1.0 | 1000 | 35 | 1.30 | 1.0 | 5.0 | 500 | MBF |
| FMB10S | 1.0 | 1000 | 35 | 1.10 | 1.0 | 5.0 | 500 | MBS |
| FABS10 | 1.0 | 1000 | 35 | 1.00 | 1.0 | 5.0 | 500 | ABS |
| FABS210 | 2.0 | 1000 | 60 | 1.00 | 2.0 | 5.0 | 500 | ABS |
| FMSB20M | 2.0 | 1000 | 50 | 1.30 | 2.0 | 5.0 | 500 | UMSB |
| FMSB30M | 3.0 | 1000 | 110 | 1.00 | 3.0 | 5.0 | 500 | UMSB |
| FMSB40M | 4.0 | 1000 | 150 | 1.00 | 4.0 | 5.0 | 500 | UMSB |
| TTR510F | 5.0 | 1000 | 180 | 1.00 | 5.0 | 1.0 | 500 | TTF |
| TTR610F | 6.0 | 1000 | 200 | 1.00 | 6.0 | 1.0 | 500 | TTF |
| TTR810F | 8.0 | 1000 | 220 | 1.00 | 8.0 | 1.0 | 500 | TTF |
| FKBP210 | 2.0 | 1000 | 55 | 1.00 | 1.0 | 5.0 | 500 | KBP |
| FKBP410 | 4.0 | 1000 | 110 | 1.00 | 1.0 | 5.0 | 500 | KBP |
| FGBU410 | 4.0 | 1000 | 110 | 1.00 | 4.0 | 5.0 | 500 | GBU |
| FGBU610 | 6.0 | 1000 | 175 | 1.00 | 6.0 | 5.0 | 500 | GBU |
| FGBU810 | 8.0 | 1000 | 175 | 1.00 | 8.0 | 5.0 | 500 | GBU |
| FGBU1010 | 10.0 | 1000 | 220 | 1.00 | 10.0 | 5.0 | 500 | GBU |
